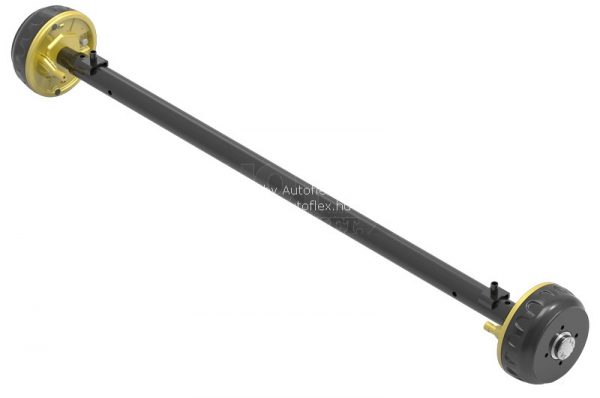

Description
Mounted with braked hub F 200.
pitch circle 112×5, M12×1,5 (spherical)
Can be used with KNOTT type overrun brake with the same load capacity.
Additional information
| Type | RB13-M |
|---|---|
| Hub type | F200 |
| Pitch circle (mm) | 112×5 |
| ECE-Protokoll number of brake | 361-006-94 |
| Offset (mm) | 26-35 |
| Hub face distance 'c' (mm) | 1960 |
| Bracket center 'b' (mm) | 1610 |
| Axle body size (mm) | 60×60×4 |
| c-b/2 size (mm) | 175 |
| Maximum axle load (kg) | 750-1350 |
| Applicable din. Tyre diameter max. (m) | 0,720 |
| Applicable din. Tyre diameter min. (m) | 0,506 |
